vielle.dev

PDS on a pi

installing a pds on my raspberry pi; Photo by Ritam Baishya on Unsplash

I want to self host my own pds for atproto, but I wanna host it on my own hardware in my room, since that feels fun and whimsical. I’ve got a pi 5 sat on my floor which I’m going to use for this, and then I’ll route it out of my vps using tailscale and caddy. Currently the pi doesn’t have ethernet or constant power (i attached a screen to it and forgot how to take it off so i turn it off at night lmfao) so I’m going to create a test account (at://test.vielle.dev) and use that for now. This’ll also be a chance to create a did:web account to mess with.

Note: I’m writing this blog post while I do it so its going to be messy

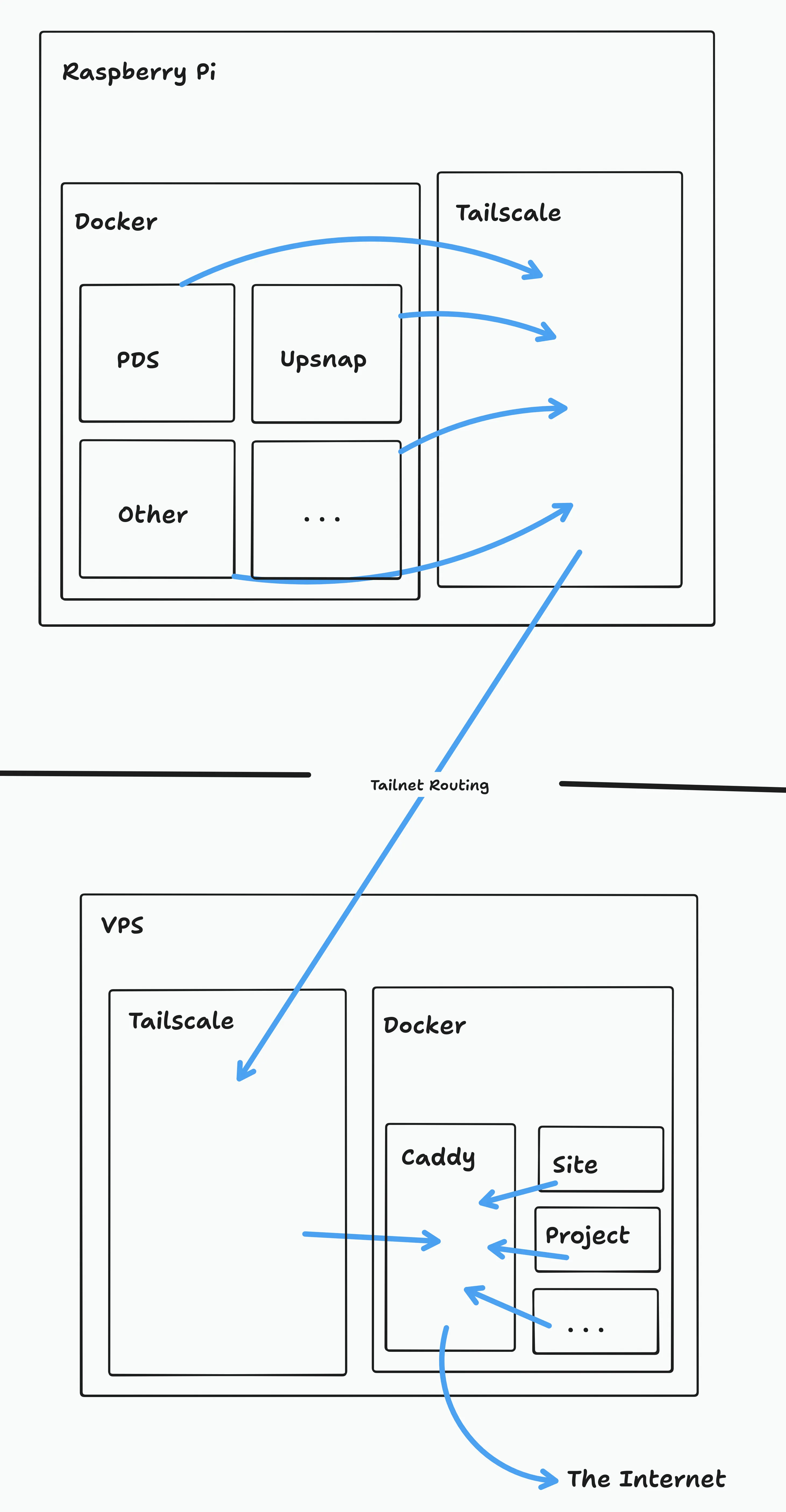

The plan is to have all my services running on docker compose, which then can be accessed by using tailscale on the pi host. This then goes into tailscale on the vps, which goes into caddy, which goes out to the net. Little complex but should work. Heres a graph

Traffic from my docker containers in my pi go to tailscale on the pi. This goes to tailscale on the vps. This + other docker containers go into a caddy docker container, which goes into the outside internet

1. Get a dummy service on the pi

I’m gonna get a dummy ping/pong https thing on the pi which i can test forwarding. Presumably if this works, then the PDS will work too when I add it.

ping-pong/main.ts

// using Deno
// new http server on 0.0.0.0:8000 which just sends "Hello"
Deno.serve({ port: 8000, hostname: "0.0.0.0" }, (req) => {
  return new Response("Hello! " + req.url);
});

ping-pong/Dockerfile

FROM denoland/deno:latest
WORKDIR /app
COPY . .
CMD ["deno", "run", "--allow-net", "main.ts"]

compose.yml

services:
  pingpong:
    build: ./ping-pong
    restart: unless-stopped
    ports:
      - 8000:8000

It works, so now I’m going to add a caddy rule to route port 8000 of my pi (http://pi:8000) to https://pds.vielle.dev:443.

2. Routing traffic from vps -> pi

All I need to do is add this code to my Caddyfile and run it locally to test.

pds.{$HOST:localhost} {
  reverse_proxy pi:8000
}

Once I’m ready to deploy, this SHOULD just be a matter of pushing the commit to master and assuming my shitty cicd works it’ll be deployed, along with this post!

3. Installing the pds in the container.

For this one, we’re gonna look at the pds setup from https://github.com/bluesky-social/pds/. This has 3 parts:

3.1. Caddyfile

Starting with the caddy container, let’s just make sure our vps has anything in the caddy config its missing.
The config is below, found here

{
  email ${PDS_ADMIN_EMAIL}
  on_demand_tls {
    ask http://localhost:3000/tls-check
  }
}

*.${PDS_HOSTNAME}, ${PDS_HOSTNAME} {
  tls {
    on_demand
  }
  reverse_proxy http://localhost:3000
}

This is using global config for an email address, which is set further up the script, but I’ll configure with environment variables, and for on demand tls which is on the pds. This means the pds can decide which subdomains get tls, with any level of wildcarding. I don’t plan on using on demand tls for anything else on my site right now, but since it can’t be scoped I might need to make a custom handler myself.

Anyway heres the updated caddyfile config:

{
  email {$PDS_ADMIN_EMAIL:404@vielle.dev}
  on_demand_tls {
    ask pi:8000/tls-check
  }
}

# ...

*.pds.{$HOST:localhost}, pds.{$HOST:localhost} {
  tls {
    on_demand
  }
  reverse_proxy pi:8000
}

This refuses to connect but I’m going to assume its because the on demand tls is failing so theres just no cert which I can tell firefox to accept.

3.2. Watchtower

Googling it, watchtower seems to be a way to automatically update containers?
I’m just going to add it straight into the compose file lmao

services:
  pingpong:
    build: ./ping-pong
    restart: unless-stopped
    ports:
      - 8000:8000

  watchtower:
    container_name: watchtower
    image: containrrr/watchtower:latest
    network_mode: host
    volumes:
      - type: bind
        source: /var/run/docker.sock
        target: /var/run/docker.sock
    restart: unless-stopped
    environment:
      WATCHTOWER_CLEANUP: true
      WATCHTOWER_SCHEDULE: "@midnight"

3.3. The PDS

The reference compose file configures the pds like this:

pds:
  container_name: pds
  image: ghcr.io/bluesky-social/pds:0.4
  network_mode: host
  restart: unless-stopped
  volumes:
    - type: bind
      source: /pds
      target: /pds
  env_file:
    - /pds/pds.env

This is self explanatory; we make a pds directory, bind it to /pds, and make sure theres at least a pds.env file in there, which is the only file we need, based on installer.sh

In installer.sh, they generate the env file like so:

cat <<PDS_CONFIG >"${PDS_DATADIR}/pds.env"
PDS_HOSTNAME=${PDS_HOSTNAME}
PDS_JWT_SECRET=$(eval "${GENERATE_SECURE_SECRET_CMD}")
PDS_ADMIN_PASSWORD=${PDS_ADMIN_PASSWORD}
PDS_PLC_ROTATION_KEY_K256_PRIVATE_KEY_HEX=$(eval "${GENERATE_K256_PRIVATE_KEY_CMD}")
PDS_DATA_DIRECTORY=${PDS_DATADIR}
PDS_BLOBSTORE_DISK_LOCATION=${PDS_DATADIR}/blocks
PDS_BLOB_UPLOAD_LIMIT=52428800
PDS_DID_PLC_URL=${PDS_DID_PLC_URL}
PDS_BSKY_APP_VIEW_URL=${PDS_BSKY_APP_VIEW_URL}
PDS_BSKY_APP_VIEW_DID=${PDS_BSKY_APP_VIEW_DID}
PDS_REPORT_SERVICE_URL=${PDS_REPORT_SERVICE_URL}
PDS_REPORT_SERVICE_DID=${PDS_REPORT_SERVICE_DID}
PDS_CRAWLERS=${PDS_CRAWLERS}
LOG_ENABLED=true
PDS_CONFIG

Lets write our own pds.env file first:

So to generate all this, I’m just going to run

mkdir ./pds
cat <<EOF > ./pds/pds.env
  PDS_HOSTNAME=pds.vielle.dev
  PDS_JWT_SECRET=$(eval "openssl rand --hex 16")
  PDS_ADMIN_PASSWORD=$(eval "openssl rand --hex 16")
  PDS_PLC_ROTATION_KEY_K256_PRIVATE_KEY_HEX=$(eval "openssl ecparam --name secp256k1 --genkey --noout --outform DER | tail --bytes=+8 | head --bytes=32 | xxd --plain --cols 32")
  PDS_DATA_DIRECTORY=./pds # edit: change this to /pds (see below)
  PDS_BLOBSTORE_DISK_LOCATION=./pds/blocks # edit: change this to /pds/blocks (see below)
  PDS_BLOB_UPLOAD_LIMIT=52428800
  PDS_DID_PLC_URL=https://plc.directory
  PDS_BSKY_APP_VIEW_URL=https://api.bsky.app
  PDS_BSKY_APP_VIEW_DID=did:web:api.bsky.app
  PDS_REPORT_SERVICE_URL=https://mod.bsky.app
  PDS_REPORT_SERVICE_DID=did:plc:ar7c4by46qjdydhdevvrndac
  PDS_CRAWLERS=https://bsky.network,https://atproto.africa,https://relay1.us-east.bsky.network,https://relay.fire.hose.cam,https://relay3.fr.hose.cam,https://relay.hayescmd.net,https://relay.xero.systems
  LOG_ENABLED=true
EOF

Pretty much everythings set up for a pds now, last step is to configure pds in the compose file and it should be online !

Just got to add this to my compose file and it should all work!

pds:
  container_name: pds
  image: ghcr.io/bluesky-social/pds:0.4
  restart: unless-stopped
  # removed network_mode: host since it should still work without it
  # and instead bound port 3000 of container to 8000 of host
  ports:
    - 8000:3000
  volumes:
    - type: bind
      # source is relative
      source: ./pds
      target: /pds
  # env is relative
  env_file:
    - ./pds/pds.env

Ok. So. Seems i didn’t configure it correctly: Error: Must configure plc rotation key. I was missing the xxd command and somehow missed that? A simple sudo apt-get install xxd should fix things. Running the env command again gives an error that the directory for the database doesnt exist !! How Fun !!

The issue was that i had ./pds in the environment variables, (which were used inside the container), when the container used /pds as the datadir. Simple fix, and now it all works!!

Next steps:

Deploy this post + caddy changes, create a test account or two, find a permanent setup for the pi, and setup regular backups of the pds; then migrate to it myself!!

Update (17/09/25)

Required changes to get this properly working:

Other notes:
